Product Description

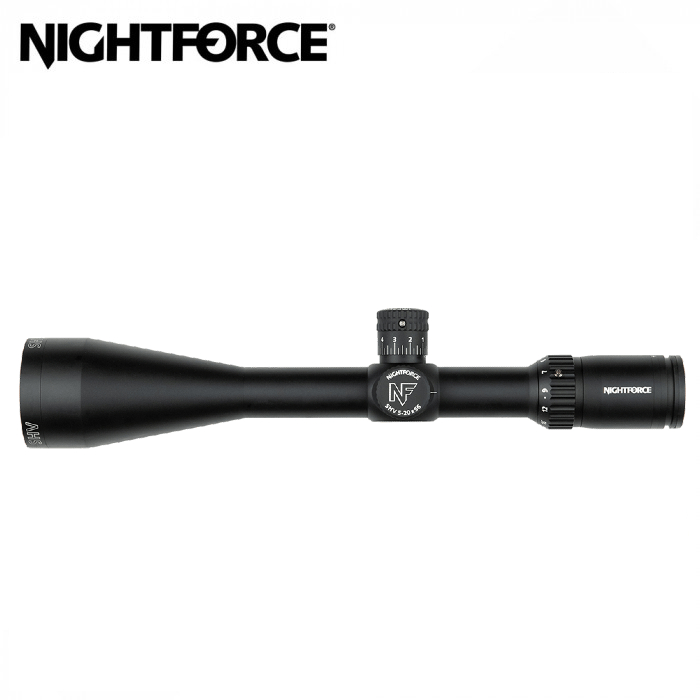

Nightforce SHV 5-20×56 Zeroset Non Illuminated
DETAILS
This is the Illuminated Version of the Nightforce SHV 5-20×56
Now, exceptional precision at extended ranges made possible by higher magnification is available at a reasonable price. While the quality of many lesser variable-power riflescopes deteriorates dramatically at high magnifications, the Nightforce SHV 5-20×56 provides superb clarity, crispness and color contrast throughout its entire range, from minimum to maximum. ZeroSet™ is standard, allowing a rapid return to your chosen zero even after multiple elevation adjustments.
The Nightforce SHV 5-20×56 has either an IHR or MOAR™ reticle which has 1-MOA elevation and windage markings, allowing accurate rangefinding at long distances and a floating center crosshair that doesn’t cover up small targets. 100-MOA total elevation travel and 70-MOA windage allows you to accurately dial in long-range shots. Elevation and windage are finger adjustable. Fully enclosed, capped, waterproof adjustments ensure your scope stays zeroed.
Adjustments are precise on the Nightforce SHV 5-20×56 with 1/4-MOA click values. Once you have established your zero, it’s easy to reset the indicator to zero. 5X to 20X variable magnification for use in a wide range of field environments. Zoom ring is easily adjusted with one hand. 56mm objective lens allows superior light transmission.
Parallax settings on the Nightforce SHV 5-20×56 are marked in yards, and while field conditions can cause variations in exact yardage, the SHV’s marking gets you closer to the crispest, clearest image possible more quickly. Side parallax control is adjustable from 25 yds. To infinity without moving from shooter-ready position.
MORE INFORMATION
Nightforce |
Nightforce SHV 5-20×56 SFP MOAR Illuminated Riflescope |
C535 |
11x-20x |
Yes |
25yd-∞ |
56mm |
Second |
30 mm |
1/4 MOA (0.25) |
SPECS
SPECIFICATIONS | SHV 5-20X56 |
---|---|
Focal Plane | Second |
Magnification Range | 5-20x |
Objective lens diameter | 56mm |
Tube diameter | 30 mm/1.18 in |
Internal adjustment range (MOA/Mil) | e: 80 MOA w: 50 MOA e: 21.8 Mil w: 13.6 Mil |
Click value | .250 MOA |
Calibrated Ranging Power | 20x |
Parallax adjustment | 25 yd–∞ |
Exit pupil diameter | 5x: 8.7 mm 20x: 2.5 mm |
Eye relief | 80-90 mm/3.15-3.54 in |
Field of view @100 yards/100 meters | 5x: 17.9 ft 20x: 5.0 ft 5x: 5.46 m 20x: 1.52 m |
Objective outer diameter | 65 mm |
Eyepiece outer diameter | 43 mm |
Overall length (inches/mm) | 15.2 in/386 mm |
Weight (ounces/grams) | 29.1 oz/825g* 30.5 oz/865g** |
Mounting length (inches/mm) | 6.5 in/165 mm |
Front/Rear Mounting Length | 2.81 in/2.04 in |
PTL (Power Throw Lever) | Accessory |
Reticles available | IHR™ MOAR™ |
Illumination | Optional |
* Non-Illuminated ** Illuminated |
|
Elevation Feature | ZeroSet™ |
FEATURES
– MOAR reticle with 1-MOA elevation and windage markings
– 100-MOA total elevation travel and 70-MOA windage
– Ideal magnification range for hunters
– Outstanding precision to varminters
RETICLE
MOAR reticle
MOAR reticle
WARRANTY
Lifetime Warranty
