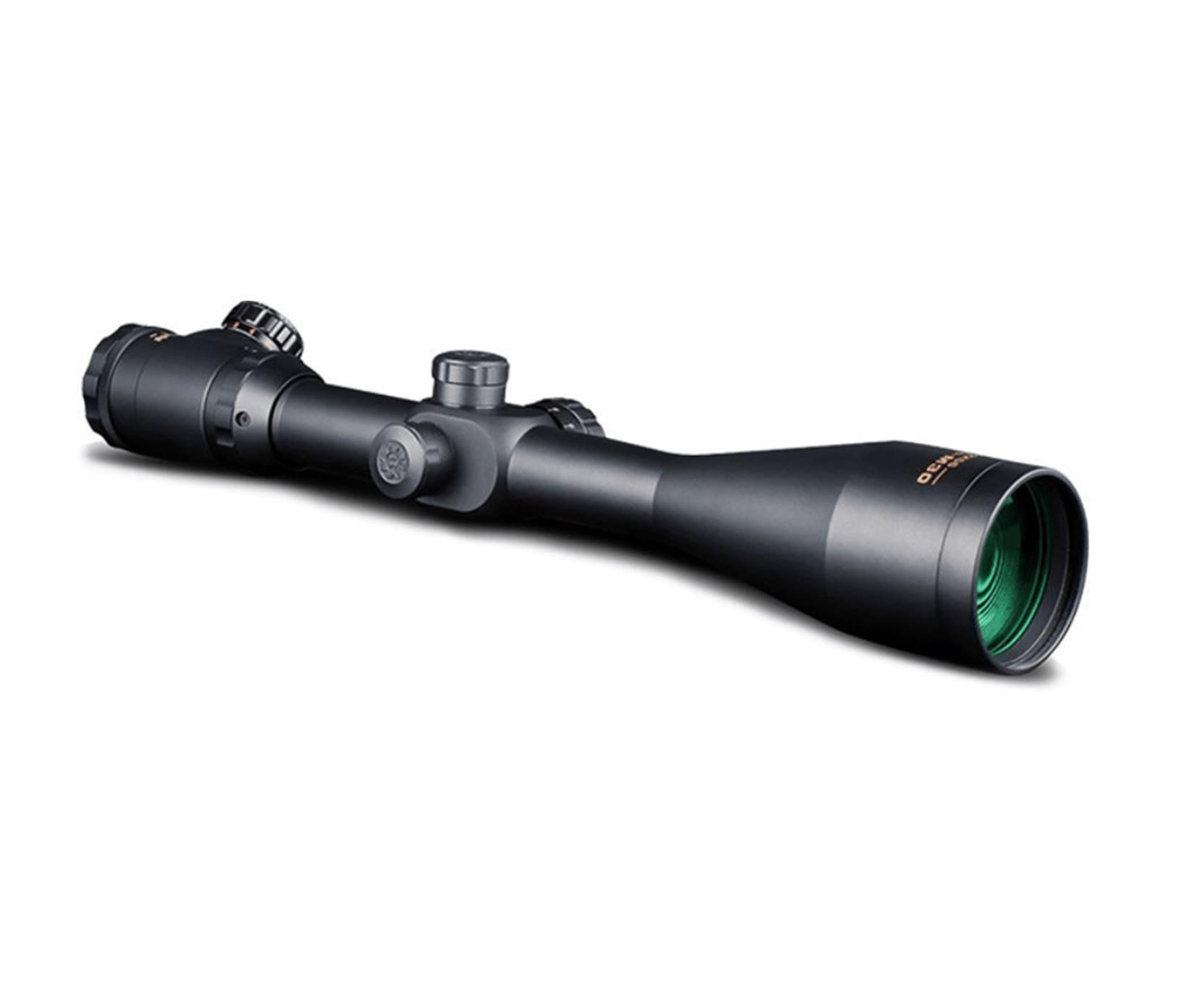

Konus Pro M30 3-12×56 Riflescope

Konus Pro M30 3-12×56

>> 30mm tube with fully multi coated lenses for excellent light transmission and visual clarity

>>> For all types of rifle from airgun to .50 cal

• Full size 1 piece 30mm tube
• Etched glass engraved illuminated reticle
• Waterproof – Shockproof – Fogproof – Exceptionally Recoil proof
• Nitrogen filled and sealed tube
• Exceptional focus clarity at all ranges

Parallax adjustable by side focus turret from 10 yards to infinity gives you much easier and faster focus at a variery of ranges.

• With flip up lens caps and 4″ (100mm) sunshade

Genuine Konus rifle scope. UK importer supplied with UK based warranty.

Etched glass 30-30 Red–Blue illuminated centre Cross Reticle

Red and Blue with 5 intensity levels on each colour and turned off for plain black.

• 45 degree Offset Illuminator Turret switch with 5 Intensities (Blue and Red)
• IR is very useful in low and bright light where it allows you to get better contrast of the reticle against dark backgrounds.
• Use levels 1-3 for low light and 4-5 in daylight.

Benefits of Glass Etched Reticles and Illumination Glass-etched reticles are superior to wire for several reasons, most notable is how much more crisp, fine and clean your view is when you look thorough the scope.

A glass etched reticle, also cannot be broken. Anyone who has shot enough has seen a wire reticle actually break within the reticle field. As the reticle design is etched into the reticle lens, it is static and cannot physically be broken.

All illuminated scopes with glass-etched reticles have the added benefit of zero internal light reflection which occurs to some extent in illuminated scopes with wire reticles.

This superior design requires an additional cost, but even if you don’t plan to use the illumination, the glass-etched reticle is a feature with value to the shooter.

Illumination comes into its own when shooting targets that are either naturally dark or made dark by light conditions such as shadow, dawn dusk, very bright light or night shooting with lamps or night vision kit.

Without Illumination a black reticle can be very hard to make out against the target. Illumination fixes this problem and gives immediate contrast. Adjust intensity according to the light conditions.

56mm Fully Multi Coated Lens:

• A great medium/large size lens that gives you superb light capture and transmission resulting in a truly excellent view.
• Fast target acquisition and moving target tracking.
• Fully multi coated with emerald to protect and limit glare and reflections

3-12x variable magnification

• A popular all round variable magnification
• Easy, fast dial adjustment.
• Exceptional clarity through premium A grade camera quality lens.

Ocular focus at 4-5 yards. Parallax from 10 yards

Zero it with Windage and Elevation Turrets:

Windage/elevation target turrets with finger click adjustment.

Parallax Focus Adjustment – SF – Side Focus

Parallax effect is the term that describes the difference in angles between objects that are seen up close and those seen far away. When you look at telephone poles passing by on the side of the road, those closest to your car seem to pass very fast, while the ones far away seem to go very slow. That difference is due to the parallax effect.

The reticle in your scope is like a telephone pole that’s very close. If you move your head on the stock while watching the target through the scope the reticle may seem to move, wobble or blur against the target. That affects where you perceive the aim point to be, and that affects your accuracy. Parallax focus correction adjustment reduces this phenomenon to the greatest extent possible.

Parallax focus correction therefore is a must for anyone attempting to use either a high magnification scope, shooting drastically different yardages with the same scope or anyone attempting to shoot at extremely close ranges or extremely long ranges. Especially so if it is a combination of these factors.

This scope features Parallax focus correction by side turret (compatible also with large optional Konus sidewheel)

Technical Summary

• Magnification: 3-12x variable
• Objective lens: 56mm
• Tube Diameter: 30mm
• Reticle: Engraved glass 30/30 with Dual Illuminated (red-blue)
• Exit Pupil: 12.7mm at 3x; 4.7mm at 12x
• Eye Relief: 3.9″/101mm
• F.O.V. @ 100 yards: 32ft/9.8m at 3x; 8.5ft/2.6m at 12x
• Click Value @ 100 Yards: 1/4 M.O.A. (7.25mm)
• Max Internal Adjustment: 50″/1.27m
• Parallax Setting: 10 Yards to Infinity
• Length: 16.4″/416mm
• Weight: 35.2oz/999gr
• Mounting Length: 6.5″/167mm

Feature Summary

• Waterproof, Fogproof, Shockproof
• Dry Nitrogen Filled
• Locking Fast Focus Ocular
• Heavy Caliber Recoil Proof Reticle
• Fully Multi-Coated Optics
• Engraved Reticle in the Second Focal Plane
• Finger Adjustable Turrets
• 45 degree Offset Illuminator Switch with 5 Intensities (Blue and Red)
• Mid-sized Parallax Wheel (Down To 10 Yards)
• 1/4 M.O.A.
• Includes Flip-up Lens Covers and Lens Cleaning Cloth
• 1 Piece Tube Construction
• 4″ Sunshade Included
• Battery: Coin Style CR2032 (included)
• Finish: Matte
