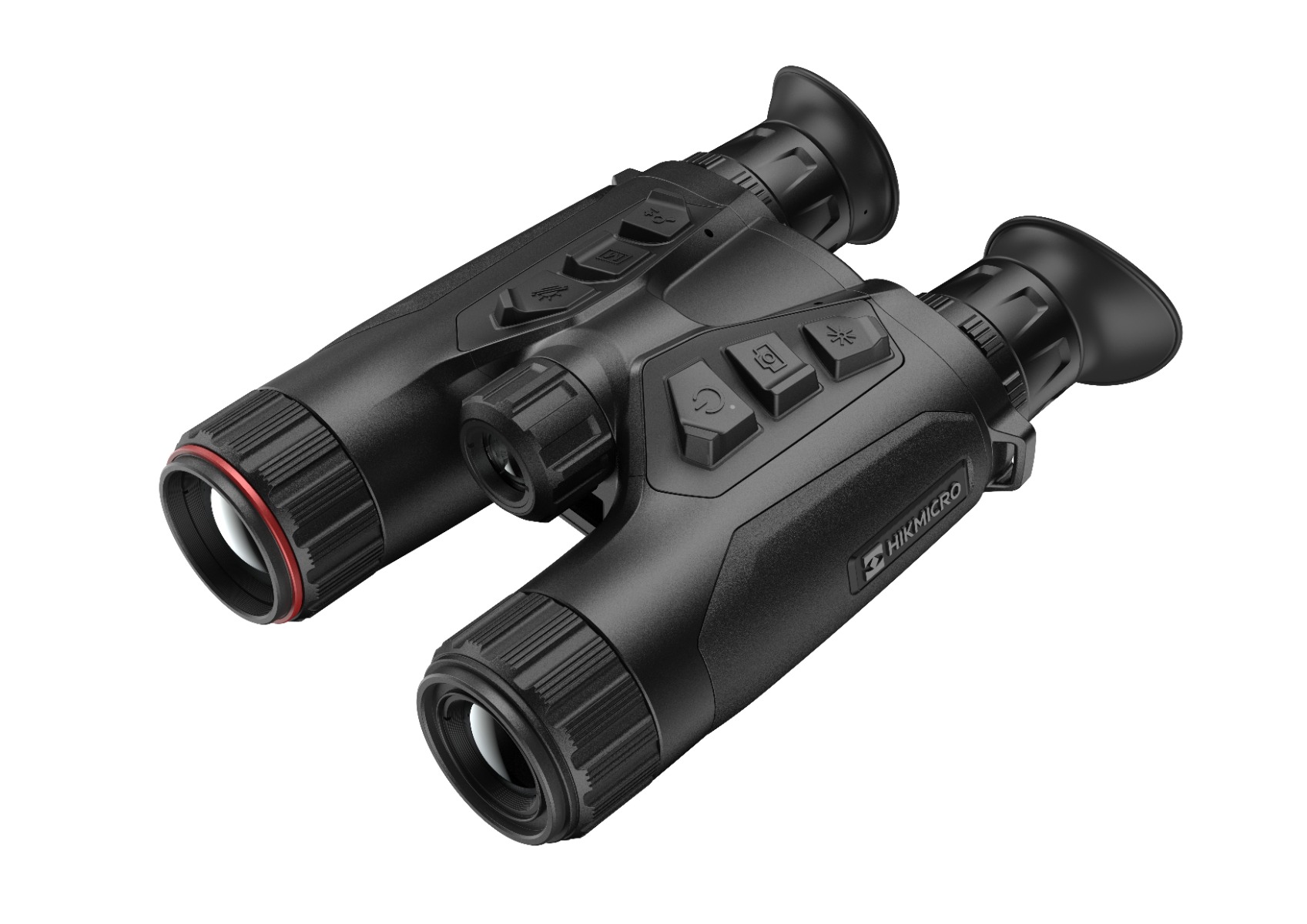

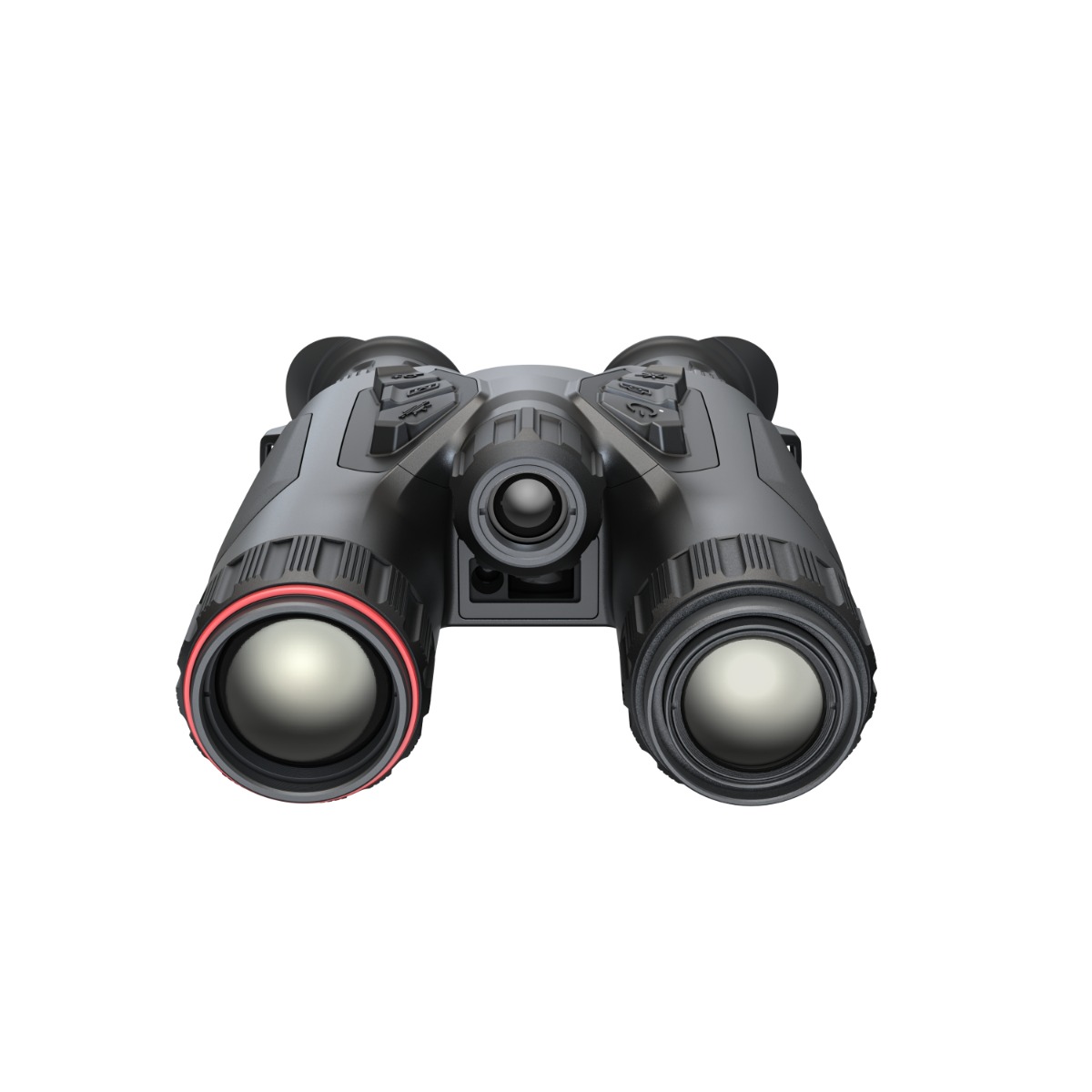

HIKMICRO Habrok 4K HE25L LRF Multi-Spectral Thermal Binoculars

Overview: The HIKMICRO Habrok 4K HE25L is an advanced entry-level thermal binocular that integrates a thermal sensor, a high-resolution 4K optical camera, infrared night vision, and a 1000m laser rangefinder. It is designed for exceptional performance in daylight, twilight, and complete darkness, offering versatility for various outdoor activities such as hunting, bird watching, and wildlife observation.

Key Features:

• Thermal Sensor: 256×192 resolution with a Sub 35mK NETD, providing reliable thermal detection.
• 4K Optical Camera: Ensures high-resolution full-color images in daylight and monochromatic images in complete darkness.
• Infrared Night Vision: Built-in IR illuminator with 850 nm wavelength for enhanced night-time visibility.
• Laser Rangefinder: 1000m rangefinder with ±1m measurement accuracy for precise distance calculation.
• Magnification: 5.5x base magnification, extendable up to 22x in digital zoom mode.
• Durability: Robust magnesium alloy chassis that is lightweight and ergonomic, with an IP67 waterproof rating.
• Battery Life: Powered by two replaceable and rechargeable 18650 batteries, offering up to 8 hours of continuous use.
• Recording Capability: Built-in memory for recording images, videos, and audio, with playback functionality and compatibility with the HIKMICRO Sight app for streaming to mobile devices.

Thermal Module:

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max Resolution: 256×192
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 35 mK (@25°C, F# = 1.0)
• Lens: 25 mm, F1.0
• Focus Mode: Focus Ring
• Detection Range: Up to 1200 m
• Min Focusing Distance: 3 m
• Magnification: 4.3x to 17.2x
• Field of View: 7.0° x 5.3°

Optical Module:

• Image Sensor: 1.88’’ Progressive Scan CMOS
• Max Resolution: 3840 x 2160
• Focal Length: 60 mm, F2.2
• Min Working Distance: 8 m
• Focus Mode: Focus Ring
• Magnification: 5.5x to 22.0x
• Field of View: 6.9° x 4.1°
• Smart IR: Yes
• Viewing Range at Night: 400 m

Image Display:

• Display: 0.49 inch, OLED, 1920 x 1080
• Palettes: Thermal (Black Hot, White Hot, Red Hot, Fusion); Optical (Day, Night, Auto)
• Exit Pupil: 8 mm
• Eye Relief: 15 mm
• Diopter Range: -5 D to +3 D
• Brightness and Contrast Adjustment: Yes

System Features:

• Recording: Video and snapshot capture, audio recording
• Storage: Built-in EMMC (64 GB)
• Connectivity: Type-C power supply, supports external power supply, HIKMICRO Sight app compatibility
• Additional Functions: PIP, Hotspot, Hot Track, Digital Magnetic Compass, GPS

General Specifications:

• Protection Level: IP67
• Dimensions: 138 mm x 68.2 mm x 223 mm
• Weight: 795 g without batteries
• Interpupillary Adjustment: 60 mm to 74 mm
• Mounting Adapter: 1/4“-20-UNC

Laser Rangefinder:

• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Max Measuring Range: 1000 m
• Measurement Accuracy: ±1 m
• Min Measuring Range: 10 m

Package Contents:

• HIKMICRO Habrok HE25L 25mm 5.5-22 x 60 4K Multi-Spectrum Thermal Binoculars
• Neck strap
• Type-C cable
• Tripod adapter
• Battery
• Quick Start Guide
• Lint-free cloth
• Battery charger

Warranty:

• 3-Year HIKMICRO Warranty

Frequently Asked Questions:

1. What is the HIKMICRO Habrok 4K?
   • It is an entry-level thermal and digital binocular with a thermal sensor, 4K optical camera, IR night vision, and a laser rangefinder, designed for enhanced outdoor observation.
2. How does it enhance hunting and wildlife observation?
   • By combining thermal detection, 4K imaging, and laser rangefinding, it significantly improves target acquisition and precision in various light conditions.
3. What sets it apart from traditional thermal binoculars?
   • Its integration of thermal and high-resolution 4K optical channels at an aggressive price point, compact design, and multiple functionalities.
4. What is the battery life?
   • Up to 8 hours of continuous use with replaceable and rechargeable 18650 batteries.
5. Can it connect to mobile devices?
   • Yes, it can stream observations to mobile devices via the HIKMICRO Sight app and allows for recording and sharing of content.
