Product Description

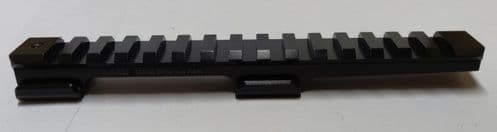

Britannia Rails Sako 75 Action III 85 Action S Aluminium 0 MOA Ultra Low Picatinny Rail Black

Ultra Low True Mil Spec Picatinny base rail adapter designed for Sako 75 Action III and 85 Action S – for calibres .22-250, .243, .260 Rem, .308 Win, 6.5 Creedmore, 7mm-08 Rem

With a grubscrew to fit directly onto the action of the rifle meaning no need for optilock bases. Simple and Easy. This keeps a low profile, giving a lift of under 10mm.

Made from T6 aircraft grade aluminium and supplied with allen keys for fitting.

Hard anodised black finish

Fit it to get a picatinny base on top of the rifle and take advantage of the huge variety of picatinny mounts, night vision sights and illuminators, red dot sights and accessories that otherwise can’t be used.

Precision CNC engineered and made in the UK

Made from T6 aluminium

0 MOA

155mm length

Sachet of Vibra Tite VC3 Threadlocker included. Best threadlocker there is

As a firearm threadlocker VC-3 acts like a shock absorber, isolating the screw from the gun frame while dampening vibration, making it perfect for:

* Scope rings

* Picatinny rails

* Laser guides

* Mounted pistol lights

* Custom grips

Prevents the screw from rotating loose, yet always remains flexible allowing it to be adjusted, removed, and reused.

Fitting instructions for Sako 75/85 picatinny Rails

Warrning

· Attention always ensure that rifle is unloaded

· Bolt is removed

· All normal safety precautions are followed

· This is an ultralow picatinny rail, which is designed to be an interference fit

· Whilst doing this pay particular care not to damage either the rail or the rifle with any tool used.

Step 1

Ensure bolt is removed from rifle

Step 2

Remove all screws from rail before fitting

Step 3

Slide rail onto dovetails from rear

Step 4

With a suitable tool (Soft faced hammer) tap the rear of the rail onto the dovetail until the bottom for the rear face of the rail is as far forward as the rear most edge of the rear dovetail.

Remember this rail is an interference/friction fit and tolerances on the dovetails of the Sako rifle can be quite varied so some many require more percussion effort than others.

Step 5

Fit the rear most (Large screw) which acts as a recoil lug and ensure that it goes down all the way through, until it is visible from the rear, under the rail and in contact with the rifle action below.

If you have pushed the rail too far onto the dovetail, you may need to tap the rail gently rearward until the recoil screw can be fully seated, as above.

Step 6

Remove recoil lug screw and treat all five grub screws with the Vibra-tite provided and screw home with the allen keys provided long end into the screw head, short end for turning i.e ⅂ . This screws only need to be nipped tight.

Step 7

Whilst ensuring rifle is unloaded and in a safe direction, refit, and cycle bolt to ensure clearance of the back of the rifle.

Use

Due to the ultralow nature of this rail and the extraction system on Sako rifles, it is advised to eject cases using a smooth fluid motion when cycling the bolt.

If you have any doubts or concerns when attempting to fit this rail please consult a qualified gunsmith.

*

MPN:

2-0061
