Product Description

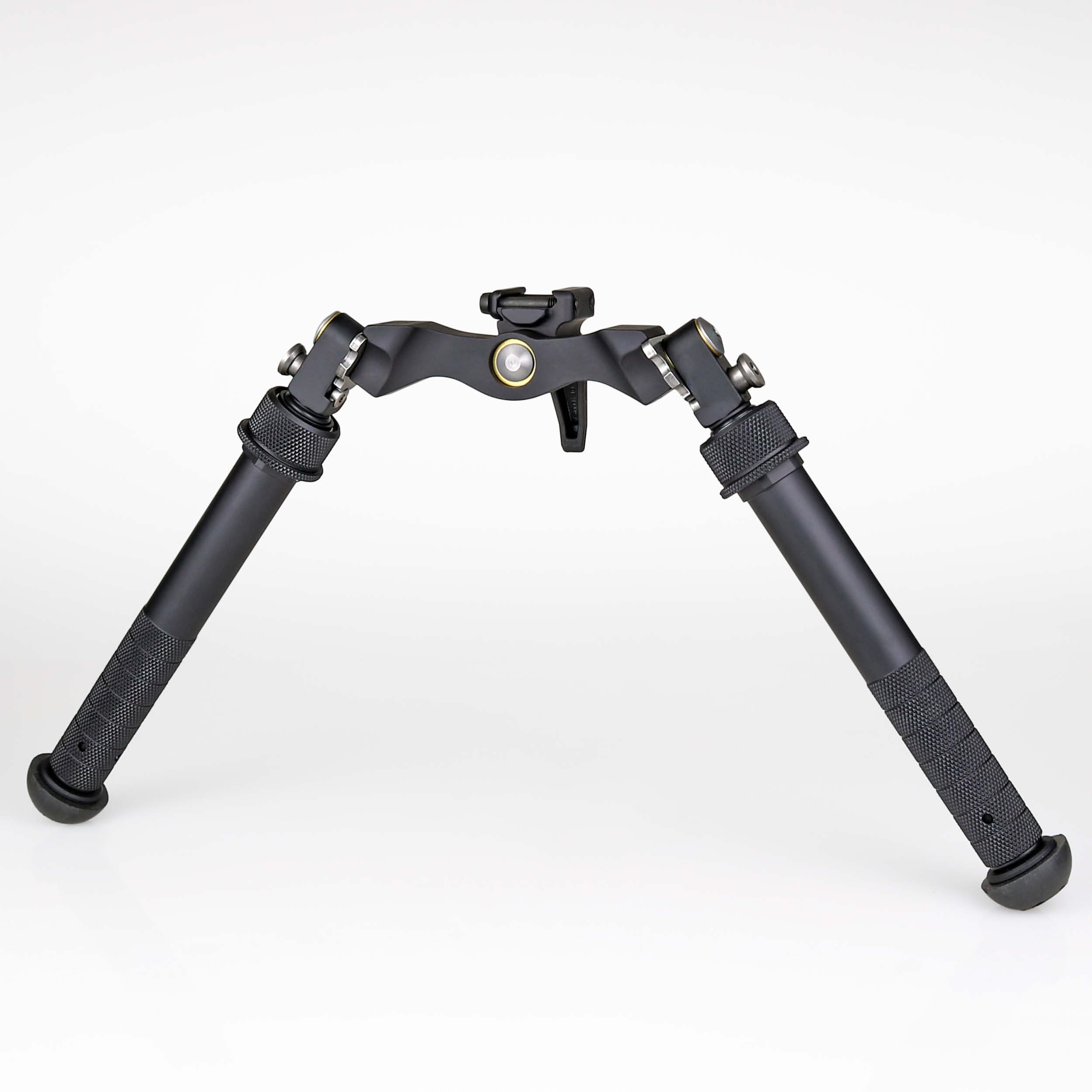

Atlas BT72 Super CAL Bipod
(Picatinny Fixed)

The BT72 Super CAL (Cant And Loc) Atlas Bipod does not PAN. This model mounts directly to any 1913 style Picatinny rail via a low profile two screw clamp assembly. Includes patented 45° leg positions, non-rotating legs, optional quick change feet and “Hold What You Move Technology®.”

Adjustable, preloaded Cant with additional tension lever using original KMW “Pod-Loc®.” Read how to adjust the Pod-Loc® lever below.

It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and has heat treated stainless steel components. Available in black only.

Using the KMW “Pod-Loc®”

With the Super CAL bipod mounted to your rifle, you will be able to lock and un-lock the canting motion by rotating the Pod-Loc® lever. Turn clockwise to lock and counter clockwise to un-lock. The Pod-Loc® lever position can be adjusted for positioning by pulling the lever directly away from the body of the Super CAL and rotating to desired position. This positioning can be repeated until optimal position is achieved.

More Information & Accessories

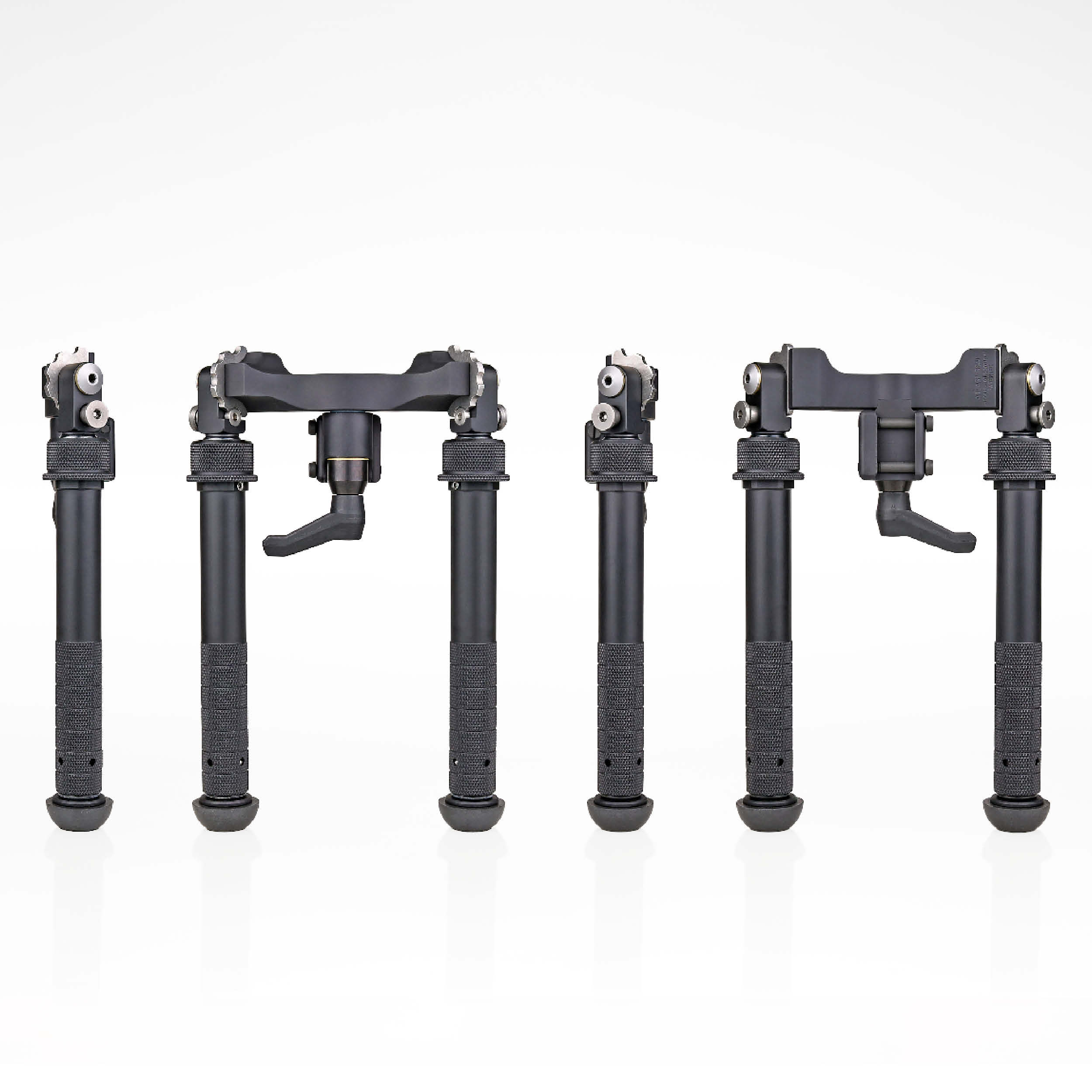

• Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
• Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
• Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the five positions ¾” apart
• Standard soft, durable rubber feet that are suitable for many surfaces included
• Optional interchangeable Ski Feet and Raider Cleat easily swapped in the field with the press of a stainless steel plunger
• Optional mounting systems available for Accuracy International and Sako rifles

• Height Range: 5.6 – 10.8” (7.5” at 90°)
• Preloaded Cant: 45 degrees
• Position Button: 0.5″ diameter
• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Weight: 21.54 ounces
• Footprint: 14.75-19.37″
